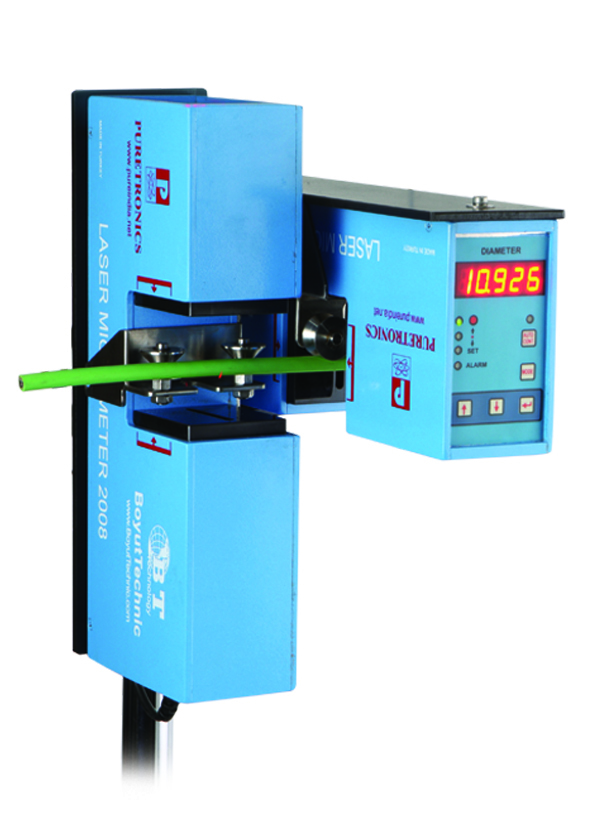

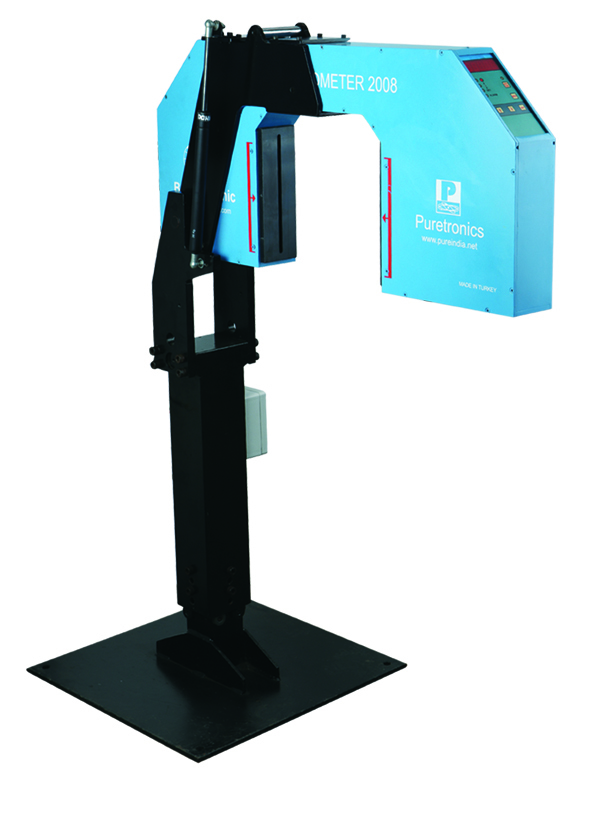

Laser Diameter Gauge

Get a Price/Quote

MOQ : 1 Unit

Laser Diameter Gauge Specification

Material
Mild Steel

Voltage
220 Volt (v)

Color
Blue

Dimension (L*W*H)
385 x 150 x 82 Millimeter (mm)

Usage
For Industrial Use

Machine Weight
16 Kilograms (kg)

Laser Diameter Gauge Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1 Unit Per Day

Delivery Time
2 - 3 Days

Packaging Details
Wooden Box

Main Domestic Market
All India

About Laser Diameter Gauge

Our offered Laser Diameter Gauge is widely used for accurate diameter measurement of wires, cables, strips, bars, hoses and tubes. It measure of outer diameter and adjust extruder screw speed or traction speed to control the purpose of OD. Further, our provided gauge is high-accuracy online measuring gauge which used the laser scan to carry on non-contact the on-line measure or alarm when the diameter go beyond the set tolerance. Our provided Laser Diameter Gauge is manufactured by using latest methodologies and skilled workforce or known for their unique features like excellent quality, low maintenance, corrosion resistant, consistent product quality and increase productivity and complete customized solution for measurement.

Technical Specification

Model	LAZER 2008
Measurement Range	0.8 - 35 mm
Gate Size	50 mm
Scan Velocity	156 m/s
Resolution	1 micron
Repeatability *	± 1 micron
Accuracy *	± 2 micron or ± %0.1 of reading value
Scan Rate	416 scan/s
Operating Temperature	0 -50° C
Relative Humidity	0 - 95% non condensing
Power Supply	Between 85Vac to 285Vac
Dimension (LxHxW)	384x150x82 mm
Power Consumption	Less than 10 Watt
